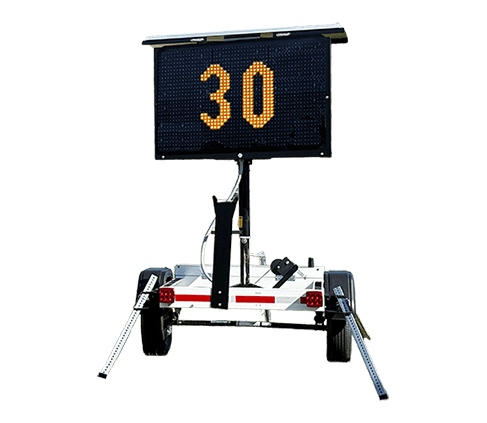

SMART VMS I

4’ X 8’ Full Matrix Changeable Message Sign With RADAR

Easy-To-Read Messages and Feedback

The Kustom Full Matrix Display gives you the power to deliver information via larger text and full sign-sized graphics. Kustom Signals’ RADAR enables large, easy-to-read speed feedback messages or the entire display can be used for RADAR feedback.

4’ x 8’ Full Matrix Display

Kustom Signals’ SMART VMS trailers represent the latest advances in ALL-LED sign and highway safety technology. This ALL-LED, Full Matrix, Graphics-capable display, utilizing 30 degree ITE Amber LEDs, gives you the lowest cost and most effective portable / changeable display message sign available today. This display is capable of both static and dynamic graphics, full display-sized messages on one to three lines and a choice of nine font sizes.

Specifications

Matrix Type

Full Matrix

User-Defined Messages

200

Height (raised)

131” / 3.3m

Trailer Width

63” / 1.6m
PHYSICAL/MECHANICAL
Height (raised)
131” / 3.3m
Height (storage)
91” / 2.3m
Trailer Length (w/ tongue)
104” / 2.6m
Trailer Length (w/o tongue)
81” / 2.1m
Trailer Width
63” / 1.6m
Sign Case Width
96” / 2.4m
Sign Case Height
48” / 1.2m
ELECTRICAL/DISPLAY
Matrix Type
Full Matrix
LEDs per pixel
2
Angularity
30 Degrees
Matrix Size
28 Rows x 50 Columns
LED Color
590 nm ITE Amber / Yellow
Character Size
7” to 30”
CONTROL / OPERATION
Permanent (factory) Messages
230
User-Defined Messages
200
Message Sequences
250
Graphical/Animation Messages
150
CHARACTER FONTS
Pixel Matrix 3 x 5
Normal Height 7” | Characters per line 12 | Lines Sign Face 4
Pixel Matrix 4 x 5
Normal Height 7” | Characters per line 10 | Lines Sign Face 4
Pixel Matrix 3 x 7
Normal Height 10” | Characters per line 12 | Lines Sign Face 3
Pixel Matrix 4 x 7
Normal Height 10” | Characters per line 10 | Lines Sign Face 3
Pixel Matrix 5 x 7
Normal Height 10” | Characters per line 8 | Lines Sign Face 3
Pixel Matrix 5 x 7 Wide
Normal Height 10” | Characters per line 7 | Lines Sign Face 3
Pixel Matrix 7 x 7
Normal Height 10” | Characters per line 6 | Lines Sign Face 3
Pixel Matrix 7 x 7 Wide
Normal Height 10” | Characters per line 5 | Lines Sign Face 3
Pixel Matrix 6 x 11
Normal Height 16.5” | Characters per line 7 | Lines Sign Face 2
Pixel Matrix 7 x 20
Normal Height 30” | Characters per line 6 | Lines Sign Face 1
Pixel Matrix 9 x 20
Normal Height 30” | Characters per line 5 | Lines Sign Face 1
Read More

Features

Key Features

  • Full Matrix 28 Rows x 50 Columns
  • 1, 2, 3 or 4 Line Messages
  • Graphics and Animations
  • 7” to 30” Characters
  • Up to 12 characters per line
  • 11 font sizes
  • RADAR Overspeed Detection
  • NTCIP Compliant
  • Legibility distance over one thousand feet (1000’)
  • 26 MUTCD symbol signs are available
  • 11 character fonts with character heights from 7” to 30”
  • Full height chevrons, moving arrows
  • Ability to flash lines or an entire message

Optional Features

  • Cellular (CDMA/1XRTT, GSM/GPRS)
  • Wi-Fi
  • GPS
  • AIMSTAR™ adjustable solar assembly
  • RADAR data logging capability
